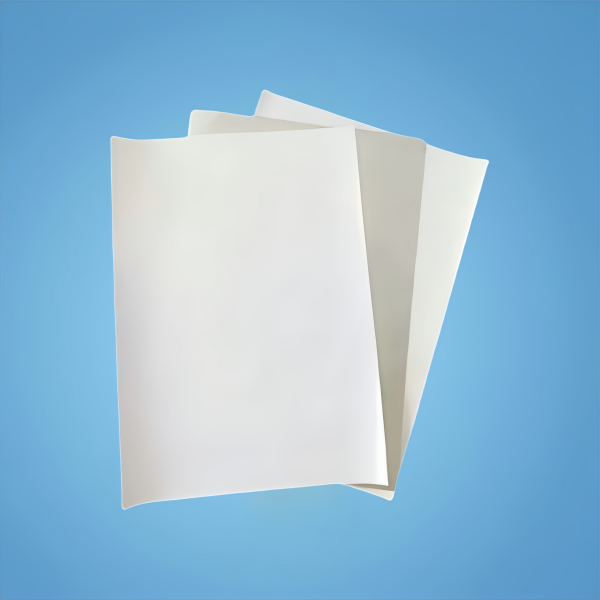

AGF-AAL Aluminum Foil Composite Aerogel Insulation Film
Product Description

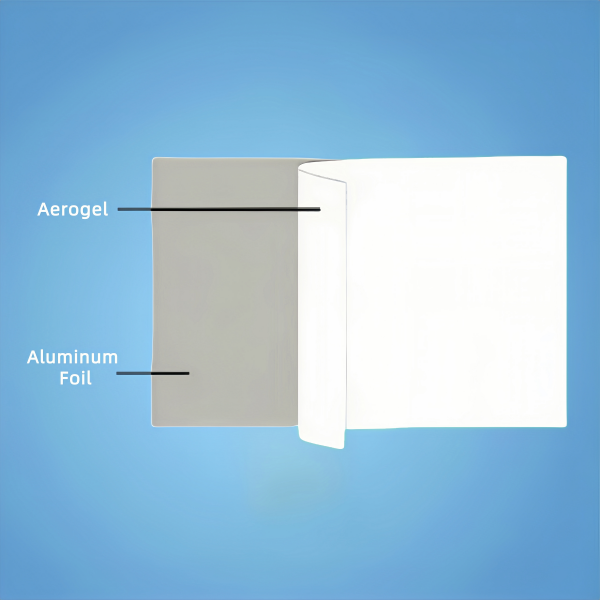

The AGF-AAL aerogel film features a 20–50 μm thick aluminum foil substrate composite with an aerogel coating, available in thicknesses of 100–300 μm. Combining lightweight and corrosion-resistant properties, the aluminum foil has a density of only 2.7 g/cm³—one-third the weight of copper foil—yet offers tensile strength ≥100 MPa, ideal for weight-sensitive applications. Its thermal conductivity is as low as 0.022–0.026 W/(m·K), ensuring excellent insulation performance.
Compared to PET substrates, aluminum foil provides superior tensile and puncture resistance, creating a dual barrier with the aerogel layer for enhanced thermal protection. The film can be directly adhered to components using pressure-sensitive adhesive. The strong bond between aerogel coating and aluminum foil eliminates powder shedding even under vibration, making it the preferred insulation solution for electronic devices and 3C electronics.
Product Advantages
Reflective Insulation: Aluminum foil reflects radiant heat, enhancing thermal efficiency
Corrosion-Resistant & Ultra-Thin: Anti-corrosion and oxidation for longer service life
Wide Temperature Range: Operates from -20 to 220 °C for versatile applications
Low Thermal Conductivity: 0.022–0.026 W/m·K for effective energy savings
Lightweight & Easy Installation: Ultra-thin design ensures convenient application
Application
Wearable devices
Smartphones
Laptops
Tablets
OLED displays
Smart TVs
Digital cameras
Consumer electronics
Product Specifications
Product model | AGF-AAL | ||
Thickness(μm) | 50-400(customizable) | ||
Product Structure | Aerogel Coating + Al(20/30/50μm) | ||
Standard Thickness (μm) | 100±10 | 200±20 | 300±20 |
Standard model | AGF-AAL-100 | AGF-AAL-200 | AGF-AAL-300 |
Thermal Conductivity (W/m·K) (Aerogel layer only) | 0.022~0.026 | ||
Temperature Resistance Range (°C) | -40~ 240 | ||
Continuous Operating Temperature (°C) | -20~220 | ||
Fire Resistance (UL94) | / | ||
Dielectric Strength (kV/mm) | / | ||
Volume Resistivity (Ω·cm) | ≥1.0×10¹³ | ||
Size | Supplied in rolls, customizable | ||
Storage conditions | Store in a dry, room-temperature environment. Shelf life: 3 years | ||
Comparison between different models
| Model | Structure Description | Standard Thickness (µm) | Substrate Thickness (µm) | Operating Temperature (°C) | Thermal Conductivity (W/m·K) | Abbreviation Notes |
| AGF–N | Pure aerogel coating | 500–3000 | – | -40 ~ 300 | 0.018–0.024 | AGF = Aerogel Film, N = No substrate |
| AGF–APA | Aerogel coating + PET film + Aerogel coating | 70, 140, 200, 250 | PET = 16 µm | -20 ~ 120 | 0.022 ~ 0.026 | A = Aerogel, P = PET |
| AGF–AGR | Aerogel coating + artificial graphite sheet + release film | 100, 200, 300 | Graphite sheet: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | G = Graphite, R = Release film |
| AGF–ACU | Aerogel coating + copper foil | 100, 200, 300 | Copper foil: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | CU = Copper foil |
| AGF–AAL | Aerogel coating + aluminum foil | 100, 200, 300 | Aluminum foil: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | AL = Aluminum foil |
| AGF–API | Aerogel coating + PI film | 100, 200, 300 | PI film: 25, 50 | -20 ~ 220 | 0.022 ~ 0.026 | PI = Polyimide film |
| AGF–AR | Aerogel coating + release film | 320, 400 | – | -20 ~ 220 | 0.03 | R = Release film |
| AGF–AP | Aerogel coating + PET film | 100, 200, 300 | PET = 1.9 µm | -20 ~ 120 | 0.022 ~ 0.026 | P = PET film |
| AGF–APR | Aerogel coating + PET film + release film | 50, 100, 200, 300 | PET = 1.9 µm | -20 ~ 120 | 0.022 ~ 0.026 | A = Aerogel, P = PET film, R = Release film |
| AGF–APDR | Aerogel coating + double side adhesive + release film | 50, 100, 200, 300 | Double side adhesive: 15 µm (PET 5 µm + adhesive 10 µm) | -20 ~ 220 | 0.022 ~ 0.026 | A = Aerogel, P = PET, D = Double Side Adhesive, R = Release film |
| AGF–PADR | PET film + aerogel coating + double side adhesive + release film | 50, 100, 200, 300 | PET = 1.9 µm, adhesive = 15 µm (PET 5 µm + adhesive 10 µm) | -20 ~ 220 | 0.022 ~ 0.026 | P = PET, A = Aerogel, D = Double Side Adhesive, R = Release film |
| AGF–TADR | TPU film + aerogel coating + double side adhesive + release film | 130, 230, 330 | – | -20 ~ 220 | 0.022 ~ 0.026 | T = TPU film, D = Double Side Adhesive, R = Release film |
