AGF-N Pure Aerogel Film | Ultra-thin Insulation
Product Description

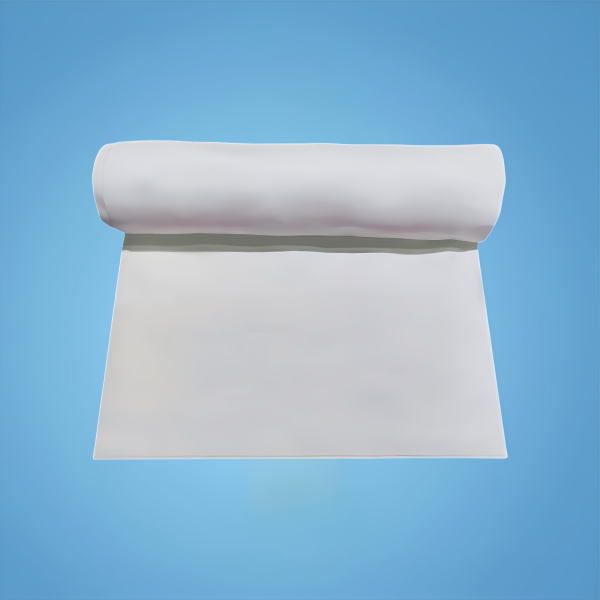

Pure Aerogel Insulation Film (AGF-N) is a pure aerogel coating with no substrate, available in standard thicknesses ranging from 500 to 3000 microns. With an ultra-low thermal conductivity of 0.018–0.024 W/(m·K), it provides 3–4 times better insulation than traditional materials. It effectively blocks heat transfer across a wide temperature range from -40°C to 300°C.
As a pure aerogel coating, AGF-N’s key advantages lie in its exceptional thermal insulation and ultra-thin profile. Even at just 500 microns thick, it delivers insulation performance several times greater than conventional materials.
Using a specialized bonding process, the aerogel coating forms a fully integrated insulation layer. Its internal nano-particle network is tightly cross-linked, ensuring long-term durability without powder shedding or vibration-related failures—issues commonly seen in traditional powdered insulation. The substrate-free design also allows for higher temperature tolerance, eliminating the residue problems caused by substrate degradation and achieving the optimal balance between high-temperature performance, thinness, and insulation efficiency.
Product Advantages
Ultra-Low Thermal Conductivity: 0.018–0.024 W/m·K for outstanding insulation performance
Wide Operating Temperature Range: -40°C to 300°C, suitable for both cryogenic and high-temperature environments
Ultra-Thin Coating Design: 0.5–3 mm thickness, easily cut and applied to complex surfaces
Ultra-Lightweight Structure: Significantly reduces overall weight and saves space
Excellent Flexibility: Resists cracking after application; can withstand repeated bending
Product Applications
Wearable Devices
Smartphones
Laptops
Tablets
OLED Displays
Smart TVs
Digital Cameras
Consumer Electronics
Product Specifications
Product Model | AGF-N |
Thickness(μm) | 500-3000(customizable) |
Thermal Conductivity (W/(m·K)) | 0.018~0.024 |
Temperature Resistance Range (°C) | -40~320 |
Continuous Operating Temperature (°C) | -40~300 |
Fire Resistance (UL94) | / |
Dielectric Strength (kV/mm) | ≥6 |
Volume Resistivity (Ω·cm) | ≥1.0×10¹³ |
Size | Supplied in rolls, customizable |
Storage Conditions | Store in a dry, room-temperature environment. Shelf life: 3 years |
Comparison between different models
| Model | Structure Description | Standard Thickness (µm) | Substrate Thickness (µm) | Operating Temperature (°C) | Thermal Conductivity (W/m·K) | Abbreviation Notes |
| AGF–N | Pure aerogel coating | 500–3000 | – | -40 ~ 300 | 0.018–0.024 | AGF = Aerogel Film, N = No substrate |
| AGF–APA | Aerogel coating + PET film + Aerogel coating | 70, 140, 200, 250 | PET = 16 µm | -20 ~ 120 | 0.022 ~ 0.026 | A = Aerogel, P = PET |
| AGF–AGR | Aerogel coating + artificial graphite sheet + release film | 100, 200, 300 | Graphite sheet: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | G = Graphite, R = Release film |
| AGF–ACU | Aerogel coating + copper foil | 100, 200, 300 | Copper foil: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | CU = Copper foil |
| AGF–AAL | Aerogel coating + aluminum foil | 100, 200, 300 | Aluminum foil: 20, 30, 50 | -20 ~ 220 | 0.022 ~ 0.026 | AL = Aluminum foil |
| AGF–API | Aerogel coating + PI film | 100, 200, 300 | PI film: 25, 50 | -20 ~ 220 | 0.022 ~ 0.026 | PI = Polyimide film |
| AGF–AR | Aerogel coating + release film | 320, 400 | – | -20 ~ 220 | 0.03 | R = Release film |
| AGF–AP | Aerogel coating + PET film | 100, 200, 300 | PET = 1.9 µm | -20 ~ 120 | 0.022 ~ 0.026 | P = PET film |
| AGF–APR | Aerogel coating + PET film + release film | 50, 100, 200, 300 | PET = 1.9 µm | -20 ~ 120 | 0.022 ~ 0.026 | A = Aerogel, P = PET film, R = Release film |
| AGF–APDR | Aerogel coating + double side adhesive + release film | 50, 100, 200, 300 | Double side adhesive: 15 µm (PET 5 µm + adhesive 10 µm) | -20 ~ 220 | 0.022 ~ 0.026 | A = Aerogel, P = PET, D = Double Side Adhesive, R = Release film |
| AGF–PADR | PET film + aerogel coating + double side adhesive + release film | 50, 100, 200, 300 | PET = 1.9 µm, adhesive = 15 µm (PET 5 µm + adhesive 10 µm) | -20 ~ 220 | 0.022 ~ 0.026 | P = PET, A = Aerogel, D = Double Side Adhesive, R = Release film |
| AGF–TADR | TPU film + aerogel coating + double side adhesive + release film | 130, 230, 330 | – | -20 ~ 220 | 0.022 ~ 0.026 | T = TPU film, D = Double Side Adhesive, R = Release film |
