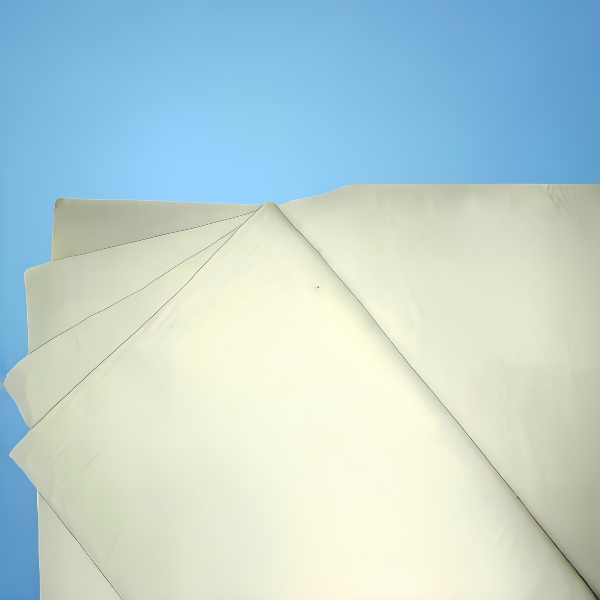

Organic Fiber Flexible Aerogel Blanket（AG40）
Product Description
Organic Fiber Flexible Aerogel Blanket（AG40）is a new type of high-temperature thermal insulation material composed of special flame-retardant fiber wool and microporous silica powder filler.
The material is a flexible insulation solution produced through a vacuum high-pressure drying process. It combines fiber wool—made from a raw material blend of para-position and meta-position structures of p-phenylenediamine and terephthalic acid—with a composite of porous oxidized silica (silicon dioxide).
Product Features
1.Flame Retardant, High Temperature Resistant, Electrically Insulating
2.Ultra-Low Thermal Conductivity: as low as 0.019W/(m·K)
3.Customizable Thickness: 0.5–15 mm or as required
4.Flexible Form: available in rolls or sheets, customizable
5.Easy Processing: can be die-cut, edge-wrapped, laminated with double-sided tape or film, and cut to specific requirements
6.Environmentally Compliant: meets RoHS directive requirements
Product Features
1.Flame Retardant, High Temperature Resistant, Electrically Insulating
2.Ultra-Low Thermal Conductivity: as low as 0.019W/(m·K)
3.Customizable Thickness: 0.5–15 mm or as required
4.Flexible Form: available in rolls or sheets, customizable
5.Easy Processing: can be die-cut, edge-wrapped, laminated with double-sided tape or film, and cut to specific requirements
6.Environmentally Compliant: meets RoHS directive requirements
Product Applications
- Aerospace and aviation
- Robotics
- E-cigarettes
- Battery energy storage
- RVs and automobiles
- Power battery module spacing
- Wearable devices
- Household appliances
- Smart terminals
- Heating elements
- Thermal insulation for mechanical equipment
Product Parameters
Item & Property | Range | Test Standard |
Thickness( mm) (Tolerance±1 0 % ) | 0.5mm/1mm/1.5mm/2mm/2.5mm/mm/ 4mm/5mm/6mm/7mm/8mm/9mm/10mm/ 15mm | ASTMD374 |
Thermal conductivity （W/K·m） | 0.015-0.019 | ASTM D5470/TPS |
Service Temperature(℃) | -100 – 400 | Standard |
Vertical Flame Rating | V- O Equivalent | UL94 |
Density（ k g / m ³ ） | 200±20 | ASTMD3574 |
Water absorption | 8% | GB/T5480 |
Shear Strength（25℃） （ MPa ） | Min≥0.7 | / |
Shear modulus（25℃） ( MPa ) | Min≥1.5 | / |
Insulation resistance | 2.02×10¹¹ | GB/T31838.4-2019(Voltage 100VDC) |
Dimensions (Rolls) | 500mm*50m，1200mm*40m，900mm*40m，500mm*40m (Note: Roll length varies depending on thickness, ranging from 15 m to 80 m) | |
Precautions / Handling Instructions
* Please use the product within the specified period. Dimensions may vary due to humidity. When accurate sizing is required, the product must be stored and managed under specific conditions for the designated period, and measurements should be taken in the same environment.
Example: Dimensions measured after storage at 25 ± 2 °C and 50 ± 20 % RH are considered the standard values.
* Appearance limits are based on internal company standards. If in doubt, please contact our company immediately.
* To avoid performance degradation, do not store the product under the following environments or conditions:
①Areas with corrosive gases such as sea breeze, chlorine, hydrogen sulfide, ammonia, sulfur dioxide, nitrogen oxides, etc.
②Locations exposed to ultraviolet (UV) light. (Storage in a shaded or cool place is recommended.)
③Temperatures outside the specified storage range.
④Under load-free conditions.
* For products designed with adhesion as a functional requirement, if the storage period has expired, please check the adhesive properties before use.
* Regardless of the intended application, for high-reliability equipment, we recommend implementing protective measures such as protective circuits or redundant circuits. Customers should perform safety testing to ensure equipment protection.
* If the product specified in this datasheet is used for applications requiring special quality or high reliability, where failure or malfunction may directly threaten life or cause bodily harm (e.g., aerospace equipment, transportation systems, combustion devices, medical equipment, disaster prevention systems, safety devices, etc.), the specifications must be confirmed for that intended use. Please consult our company representative before use.
